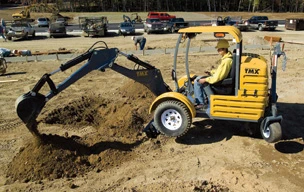

Innovative Equipment, Schofield, Wis., has introduced the new line of TMX Towable Mini-Excavators. Featuring a quick-on and quick-off hitch system, the TMX units can be hooked behind a standard 1/2-ton pick-up, van or light-duty tow vehicle. No trailer is needed, and no CDL license is required..
Unlike conventional mini-excavators, TMX units eliminate tracks by utilizing zero-turn technology common on lawn mowers, the company explains. The zero-turn rotation enables access to tight locations. The drive tires are designed for mud terrain providing traction in demanding applications. Featuring a highly efficient orbital motor with tapered roller bearings on the output shaft, the wheel motors allow plenty of durability for challenging loads.
Weighing only 2,941 pounds (1.5 ton class), the TMX features an 8-foot digging depth. Similar digging depth on traditional mini-excavators is typically only found on a 3-ton class or larger machine. With a 6,600 pound digging force. The unit features a 7-foot 2-inch loading height with a swing radius of 140 degrees, allowing easy digging access next to walls and other obstructions.
The TMX offers a 72-inch, 4-way blade system for efficient backfilling and grading after excavation work is complete. The blade features 21 degrees of tilt, making for precision grading. A fully hydrostatic drive provides ease of operation and ample power at the touch of a finger for both the backhoe and blade.
Contractors may expand the benefits of the TMX even further with the use of the auxiliary hydraulic tool circuit, which has the ability to power hundreds of hydraulic tools including jackhammers, pumps and saws. An electronic control circuit reduces the amount of hydraulic hose needed and enhances efficiency. The TMX Towable Mini-Excavators are available in either gas or diesel models. The gasoline model features Subaru’s 28 horsepower fuel injection engine, while the diesel version is powered by a 21.5 horsepower Kubota diesel engine.
Though the overall design is compact, the operator’s platform offers spacious and roomy comfort with convenient armrest-mounted joystick controls for both digging and grading. The seat is offset 4 inches from center providing an unobstructed view of the digging arm, bucket and backfill blade.
For more information, contact Innovative Equipment, 8404 Venture Circle, Schofield, Wis., call 715-359-3002, e-mail chris@aplaser.com, or visit www.tmx-excavator.com.
