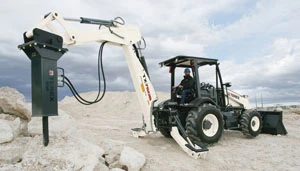

Terex TXH Series hydraulic hammers are built for complete compatibility with Terex compact excavators and loader backhoes. Every hammer in the TXH Series is vibra-silenced, via the polymer suspension pad, to reduce total operator and carrier machine vibration exposure (in compliance with the latest standards in operator safety and comfort). The TXH hammers’ high-blow energy is constant throughout the engine rev range and has a low susceptibility to back pressure. These hammers are engineered to guarantee lower sound power levels, and the entire hydraulic hammer system is easily maintained through a single-point greasing system. Its one-piece box design does not use cross-bolts, allowing the hammer to work in a narrower trench or close quarters without concern that the hammer could get hung up.
The TXH Series hammers include the TXH350S, TXH400S, TXH700S, TXH1100S and the TXH1400S. The Terex range of hammers offer 251 ft lbs (350 J) to 1,033 ft lbs (1,400 J) of maximum energy per blow and 450-950 to 550-1,100 blows per minute.
More information is available at construction.terex.com.
